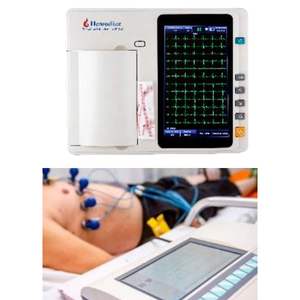

Product Introduction

• 2-lead ECG simultaneous acquisition with digital signal processor for high-quality ECG waveforms using AC, baseline, and EMG filters
• Simultaneous display of 3/6/12 lead ECG waveforms with printing mode, sensitivity, speed, and filter status for easy interpretation
• Multiple printing formats: Auto 3×4+1, Auto 3×4, Auto 2×6+1, Auto 2×6, Auto 4×3, Rhythm 4, Rhythm 3, Rhythm 2, and Manual modes
• Adjustable waveform print length with periodic printing function
• Auto-analysis and interpretation of ECG parameters including HR, P-R interval, P duration, QRS duration, T duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
• Auto-interpretation helps reduce doctor workload and improves efficiency
• Dual power supply: AC/DC with built-in rechargeable lithium polymer battery
• Battery standby up to 10 hours, prints up to 260 ECG reports or 180 minutes continuous printing
• Built-in large storage capacity for more than 1000 cases

Specifications

• Number of Channels: 3 Channels
• Brand: OSC
• Model: 301
• Machine Type: Portable
• Recording Speed: 5 mm/s, 6.25 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s
• Operating Mode: Automatic
• Battery Operating Time: Up to 8 hours
• Battery Backup: 4–6 hours
• Weight: 1.5 kg
• Sensitivity: 10
• Filter Type: Baseline Filter

Accessories

• Power Cord
• Patient Cable
• User Manual
• Warranty Card

Manufacturer

OM Surgical Company
