Product Introduction

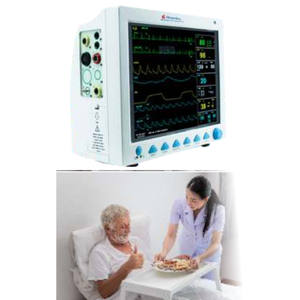

This patient monitor is designed with abundant functions for clinical monitoring of adult, pediatric, and neonatal patients. Users can select different parameter configurations according to their requirements.

The monitor operates on 100–240V, 50/60Hz power supply and features a 12.1" color TFT LCD that displays real-time data and waveforms. It supports simultaneous display of eight-channel waveforms and full monitoring parameters, with an optional 48mm thermal recorder.

The device can be connected to a central monitoring system via wired or wireless network, enabling a complete network monitoring system.

Specifications

Standard Parameters: ECG, SpO2, NIBP, RESP, TEMP, PR

Optional Parameters: 2-IBP, CO2, Thermal Printer

• Display Mode: 12" high-resolution color TFT LCD
• Suitable for adult, pediatric, and neonatal monitoring
• Multi-language interface (English, Chinese, optional: French, German, Italian, Turkish, etc.)
• Multiple display modes including large character interface
• Customizable waveform and data colors
• 480-hour trend data storage and 40-second waveform review
• 7-lead ECG display and waveform series display
• Defibrillation-proof and anti high-frequency surgical interference
• Advanced digital SpO2 technology with strong anti-interference capability
• NIBP data storage up to 400 records with review function
• Wireless and wired connectivity with central monitoring station
• Supports SD card and USB disk for data storage and updates
• VGA video output and adjustable LCD backlight
• Voice alarm support
• Synchronous signal output function
• Three operation modes: Monitoring, Surgery, Diagnosis
• Automatic arrhythmia waveform analysis
• Drug concentration calculation and titration table function
• Dual-channel temperature monitoring with error display
• NIBP dual overpressure protection (software & hardware)
• Built-in rechargeable lithium battery for continuous monitoring
• Certified with FDA (USA) and CE (Europe)
