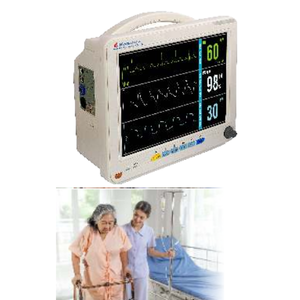

Product Introduction

This patient monitor is designed for accurate and continuous monitoring of vital parameters in adult, pediatric, and neonatal patients. It features a compact and portable design with advanced monitoring capabilities.

Features

• High resolution 12.1" color TFT display
• Lightweight, compact, and portable design
• Supports ECG, SpO2, NIBP, RESP, dual temperature, and pulse rate
• Built-in rechargeable lithium battery
• 7-lead ECG waveform display on the same screen
• 72-hour graphical and tabular trends of all parameters
• 72 alarm event storage and recall
• 32-second full disclosure waveform review
• Apnea alarm with audible and visual alerts
• Suitable for adult, pediatric, and neonatal patients
• Upgradeable with ETCO2 and IBP modules

ECG

• Lead Mode: 3-lead or 5-lead
• Lead Selection: I, II, III, aVR, aVL, aVF, V
• Heart Rate Range: 15 – 300 bpm (Adult, Pediatric, Neonatal)
• ECG Waveform: 2 channels
• Accuracy: ±1 BPM or ±1%
• S-T Segment Detection Range: -0.2 mV to 1.0 mV
• Alarm: Audible and visual alarm with event review

SpO2

• Measurement supported with high accuracy
• Reliable performance with anti-interference capability

NIBP

• Non-invasive blood pressure monitoring
• Continuous and accurate readings

Respiration

• Apnea alarm support

Temperature

• Measurement Range: 0 – 50°C
• Dual-channel temperature monitoring

Pulse Rate

• Continuous pulse monitoring

Optional Parameters

• ETCO2
• IBP
