ECG

• Lead Mode: 3-lead or 5-lead
• Lead Selection: I, II, III, aVR, aVL, aVF, V
• Heart Rate Range: Adult: 15–300 bpm; Pediatric/Neonatal: 15–300 bpm
• ECG Waveform: 2 channels
• Accuracy: ±1 BPM or ±1%
• S-T Segment Detection Range: -0.2 mV to 1.0 mV
• Alarm: Audible and visual alarm with event review

General Features

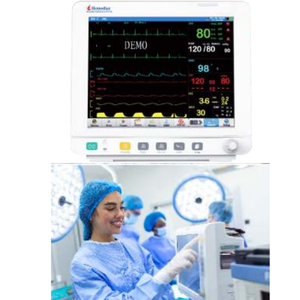

• High resolution 12.1" color TFT display
• Lightweight, compact, and portable design
• Supports ECG, SpO2, NIBP, RESP, dual temperature, and pulse rate
• Built-in rechargeable lithium battery
• 7-lead ECG waveform display on the same screen
• 72-hour graphical and tabular trends for all parameters
• 72 alarm events storage and recall
• 32-second full disclosure waveform review
• Suitable for adult, pediatric, and neonatal patients

SpO2

• Measurement Range: 0% – 100%
• Accuracy: ±2% (70%–100%); unspecified for 0%–69%

NIBP (Blood Pressure)

• Method: Oscillometry
• Modes: Manual / Auto / Continuous
• Auto Measurement Time: Adjustable
• Measurement Range: 10 – 270 mmHg

Respiration

• Method: RA-LL impedance
• Range: Adult: 0–120 rpm; Pediatric/Neonatal: 0–150 rpm
• Apnea Alarm: Yes

Temperature

• Measurement Range: 0–50°C
• Channel: Dual-channel

Pulse Rate

• Range: 20–254 bpm
• Accuracy: ±3 bpm

Optional Parameters

• ETCO2
• IBP (Upgradeable)
