Specifications

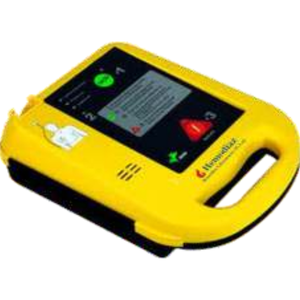

• Model Name/Number: OSC AED 7000
• Brand: OSC
• Operation Mode: Automatic
• Battery Type: Non-rechargeable 12V DC, 3.0 Ah
• Weight: 2 kg
• Dimensions: 303 × 216 × 89 mm

Performance

• Output: Biphasic truncated exponential
• Energy Sequence: 150J, 150J, 200J
• Charge Time: 8 seconds to 150J
• Analysis Time: 9 seconds
• Output Energy Accuracy: ±15% (25–75 ohm impedance)
• Maximum Voltage: 1200 ± 50V

Prompts

• Audible Prompts: 20 voice prompts
• Visual Prompts: LED indicators

Controls

• Two-button operation: On/Off and Shock

Battery

• Capacity: 100 discharges at 200J or 120 discharges at 150J
• Shelf Life: 10 years (5 years storage + 5 years standby at 25°C ±15°C)

Environmental Conditions

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 55°C (without battery)
• Operating Humidity: 30% to 95% (non-condensing)
• Storage Humidity: Up to 93% (non-condensing, without battery)
