Product Introduction

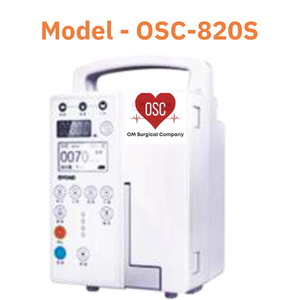

Beyond Infusion Pump BYS-820 with HD LCD Display is designed for accurate and reliable infusion therapy. It offers a user-friendly interface, multiple safety features, and advanced monitoring functions suitable for clinical use.

Features

• HD LCD display with large, clear interface and dynamic working status
• Audible and visual alarms for occlusion, empty fluid, low battery, end of infusion, door open, and wrong settings
• Compatible with most infusion set brands after proper calibration
• Preset solution volume to reduce nursing workload
• Work modes: ml/h and drop/min (freely switchable)
• Three levels of occlusion: High, Medium, Low
• Purge function available
• KVO (Keep Vein Open) automatically activates after infusion completion (3 ml/h)
• Automatically records last infusion settings
• BYS-820D model stores up to 2000 infusion records with drug library
• OEM support available

Specifications

• Product Dimensions: 28 × 21 × 13 cm
• Weight: 2.5 kg
• Item Weight: 2 kg 500 g
• Power Source: AC 100–240V, 50/60Hz with internal battery
• Net Quantity: 1 Unit
• Manufacturer: OSC

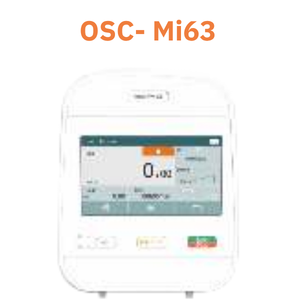

• Model: OSC-MI63 / BYS-820
• Date First Available: 22 March 2018
• ASIN: B07BN7
• Status: Not discontinued

Application

This instrument is widely used in internal medicine, surgery, pediatrics, obstetrics and gynecology, ICU, CCU, operation rooms, and other clinical infusion treatments (not suitable for blood transfusion).

It is especially suitable for clinical treatments requiring long-term accurate control of infusion rate and continuous monitoring of infusion processes.

Package Contents

• Infusion Pump
• Operating Manual
• Power Cord
